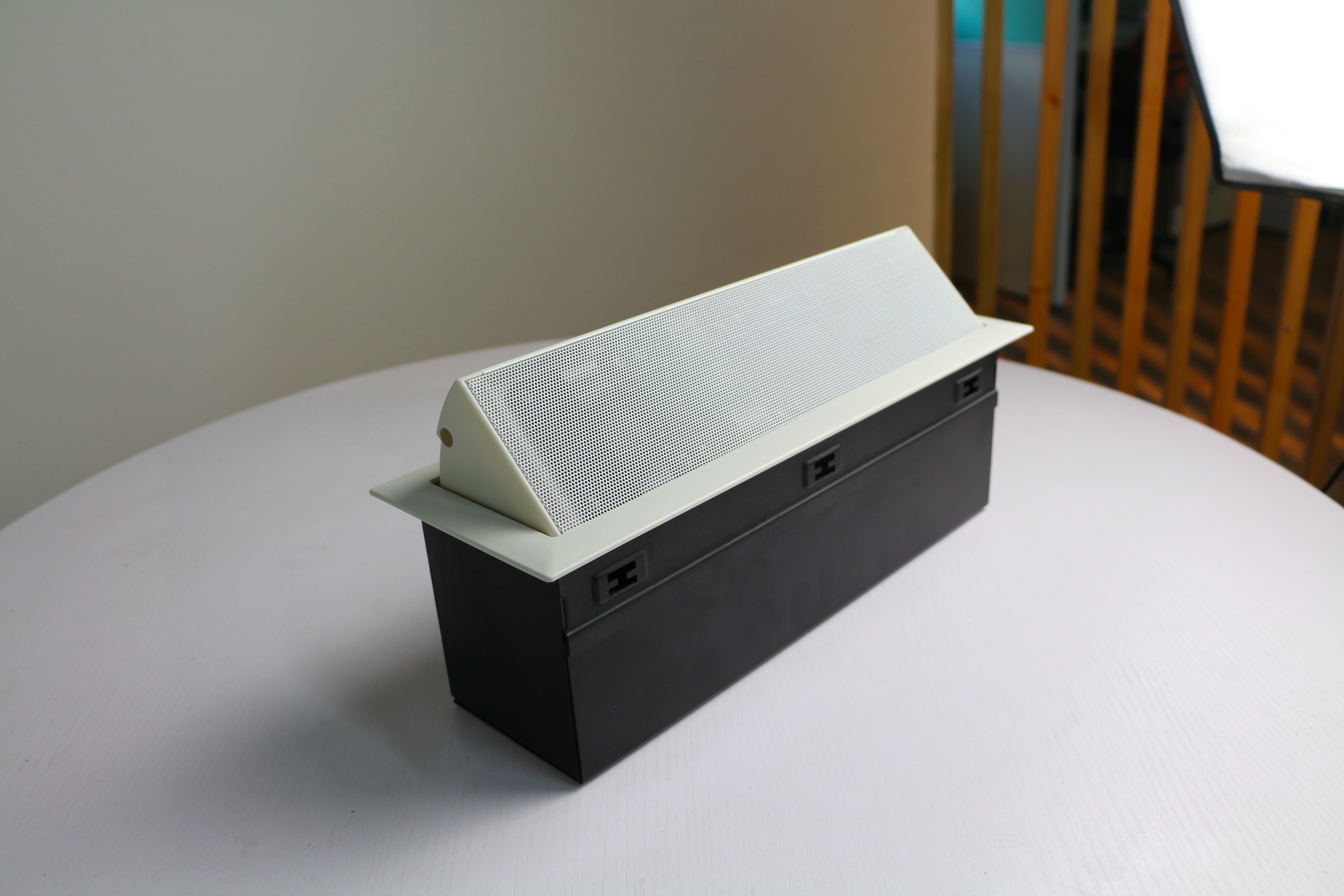

嵌入式吸顶扬声器 X8C 天花吸顶同轴POE有源音箱，内置分频器，内置dante模块，有多种智慧控制方法； A. 用电源开关手动控制 B. 通过继电器连接中控系统控制 C.可通过控制器同时控制所有的电动音箱或根据需求可通过控制器分区控制（通过控制器JR45网线，有效距离可达120米）
类型：8 " Dante有源同轴二分频电动扬声器
单元：低音单元：1只8 "铝盆架，Ф120mm磁铁，1.5"铜线耐高温音圈
高音单元： 1只1 "球顶驱动器；过流、过压保护
频率响应： 78Hz-20KHz
PoE功放功率:60W
标称阻抗： 8Ω
灵敏度：91dB/1W/1M
覆盖角度： 90°x 90°
最大声压： 109dB
功放接口: 1x RJ45 Dante接口:1路，具备增益,均衡,压限,噪声门，静音控制调整
供电:PoE+ ,compatible with 802.3af 兼容于 802.3at，自然对流散热
结构： ABS高密度箱体，HD涂层体
白色高硬度喷漆：1.5mm六角形拉钢网，贴防水防尘声学海绵
产品尺寸：380mm x 280mm x210mm
开孔尺寸：363mm x260mm安装深度（无后罩/有后罩）210mm
重量：5.5KG 毛重：7.5KG
Embedded Ceiling Speaker X8C Ceiling-mounted coaxial POE active speaker, built-in crossover, built-in Dante module, multiple smart control methods;
A. Manual control using the power switch
B. Control via central control system connected through relay
C. Can be controlled simultaneously for all powered speakers via a controller or zoned control based on demand (via controller JR45 network cable, effective distance up to 120 meters)
Type: 8" Dante active coaxial two-way powered speaker
Units: Bass unit: 1 x 8" aluminum basinframe, Ф120mm magnet, 1.5" copper wire high-temperature voice coil
Treble unit: 1 x 1" dome driver; overcurrent and overvoltage protection;
Frequency response: 78Hz-20KHz
PoE amplifier power: 60W
Nominal impedance: 8Ω
Sensitivity: 91dB/1W/1M
Coverage angle: 90° x 90°
Maximum sound pressure: 109dB
Amplifier interface: 1 x RJ45 Dante interface
1 channel, with gain, equalization, compression, noise gate, and mute control adjustment
Power supply: PoE, compatible with 802.3af, compatible with 802.3at, natural convection cooling
Construction: ABS high-density enclosure, HD coating
White high-hardness spray paint: 1.5mm hexagonal steel grille, waterproof and dustproof acoustic sponge inside
Product dimensions: 380mm x 280mm x 210mm
Cutout dimensions: 363mm x 260mm installation depth 210mm
Weight: 5.5KG
Gross weight: 7.5KG |
