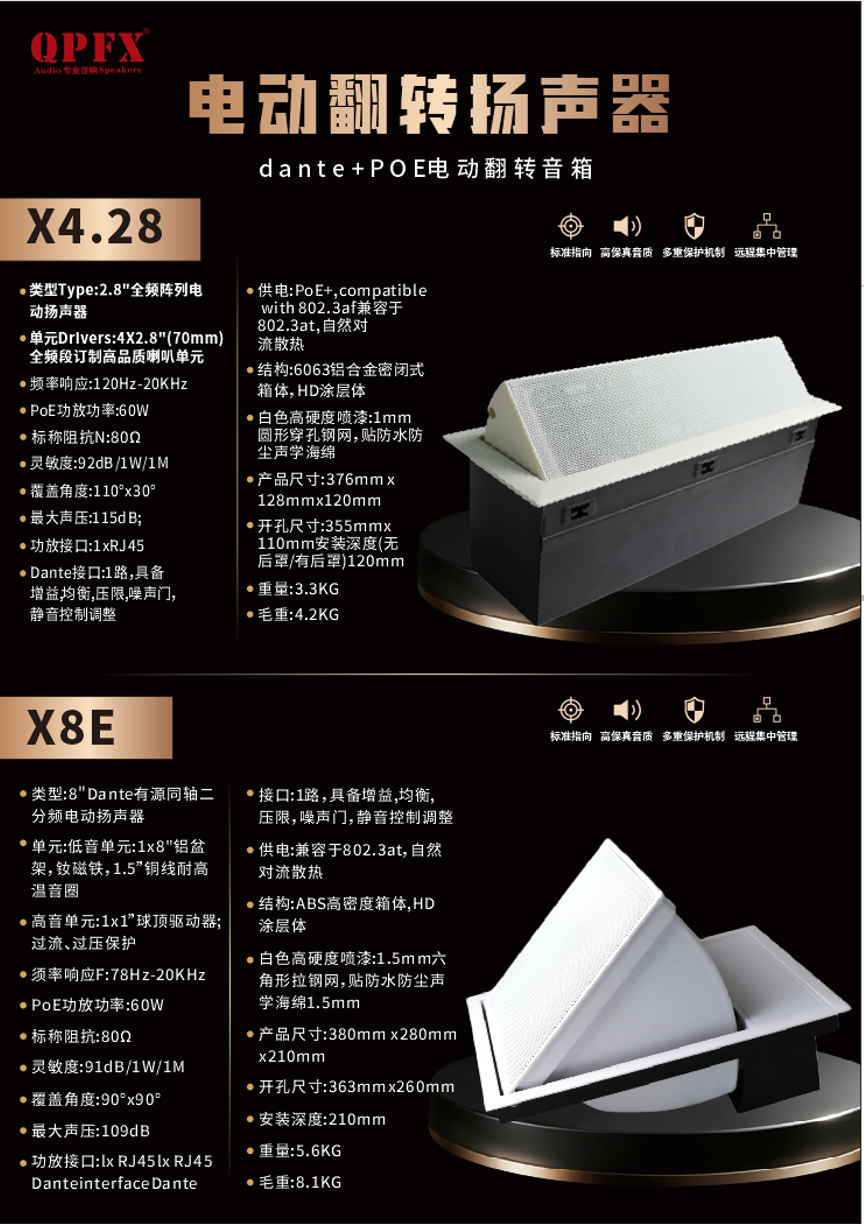

嵌入式电动翻转扬声器 X4.28
可使用于演讲台、会议桌面、播报台、指挥中心桌面监听、墙壁倾斜、地面倾斜、天花吸顶多功能POE有源电动同轴扬声器，内置分频器，内置dante模块。可调角度定位45°解决了高音具有指向性问题以取得最佳的声像定位。 有多种智慧控制方法: A.用电源开关手动控制 B.通过继电器连接中控系统控制 C.可通过控制器同时控制所有的电动音箱或根据需求可通过控制器分区控制（通过控制器JR45网线，有效距离可达120米）
类型Type：2.8 " 全频阵列电动扬声器 单元Drivers：4X2.8 "（70mm）全频段订制高品质喇叭单元 频率响应： 120Hz-20KHz
PoE功放功率:60W
标称阻抗N： 8Ω
灵敏度：92dB/1W/1M
覆盖角度： 110°x 30°
最大声压： 115dB；
功放接口: 1x RJ45 Dante接口:1路，具备增益,均衡,压限,噪声门，静音控制调整 供电:PoE+ ,compatible with 802.3af 兼容于 802.3at，自然对流散热 结构：6063铝合金密闭式箱体，HD涂层体 白色高硬度喷漆：1mm圆形穿孔钢网，贴防水防尘声学海绵 产品尺寸：376mm x 128mm x120mm 开孔尺寸：355mm x110mm安装深度（无后罩/有后罩）120mm
重量：3.3KG
毛重：4.2KG

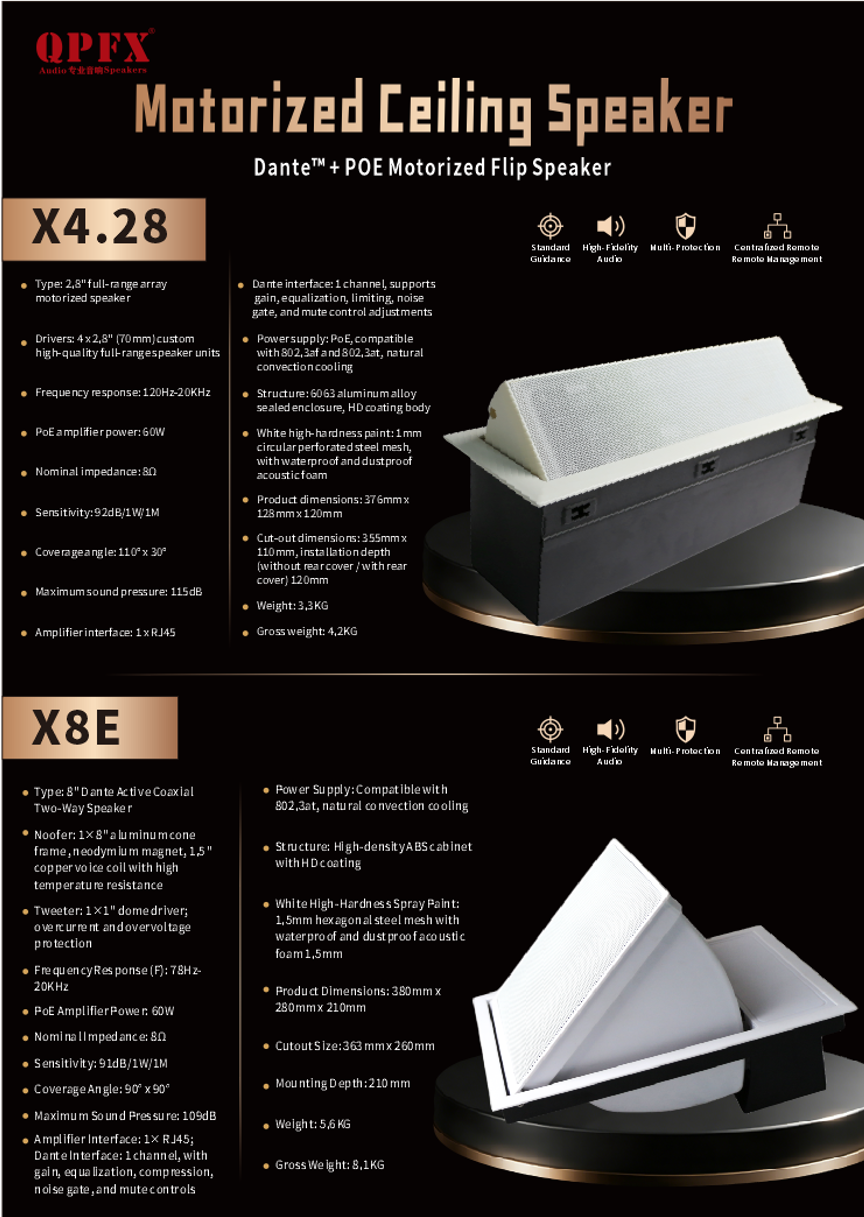

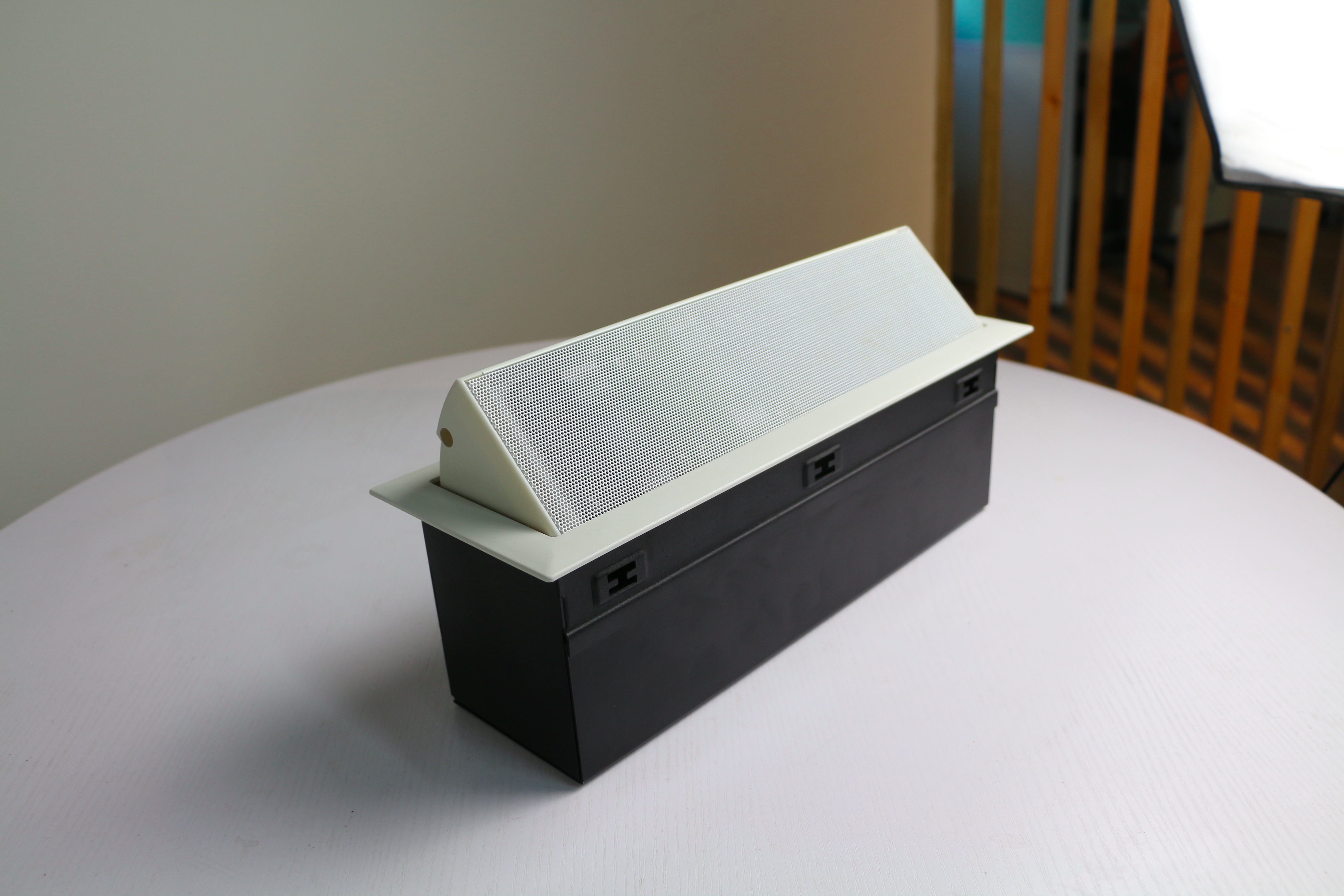

Embedded Motorized Flip Language Speaker X4.28
Can be used for podiums, conference tables, broadcasting desks, command center desktop monitoring, wall tilt, floor tilt, ceiling mount, multifunctional POE active motorized coaxial speaker, built-in crossover, built-in Dante module. Adjustable angle positioning of 45° solves the directional problem of high frequencies to achieve optimal sound imaging
Multiple smart control methods
A. Manually controlled using the power switch
B. Controlled via relay connected to a central control system
C. All motorized speakers can be controlled simultaneously via a controller or zone-controlled as needed (via controller JR45 network cable, effective distance up to 120 meters)
Type: 2.8" full-range array motorized speaker
Drivers: 4 x 2.8" (70mm) custom high-quality full-range speaker units
Frequency response: 120Hz-20KHz
PoE amplifier power: 60W
Nominal impedance: 8Ω
Sensitivity: 92dB/1W/1M
Coverage angle: 110° x 30°
Maximum sound pressure: 115dB
Amplifier interface: 1 x RJ45
Dante interface: 1 channel, supports gain, equalization, limiting, noise gate, and mute control adjustments
Power supply: PoE, compatible with 802.3af and 802.3at, natural convection cooling
Structure: 6063 aluminum alloy sealed enclosure, HD coating body
White high-hardness paint: 1mm circular perforated steel mesh, with waterproof and dustproof acoustic foam
Product dimensions: 376mm x 128mm x 120mm
Cut-out dimensions: 355mm x 110mm, installation depth (without rear cover / with rear cover) 120mm
Weight: 3.3KG
Gross weight: 4.2KG |
