嵌入式电动翻转扬声器 X8E
多功能电动翻转同轴POE有源音箱，适合于天花吸顶、墙壁倾斜等扩声环境。内置分频器，内置dante模块。 5个角度定位（20°，30°，35°，40°，45°），解决了高音具有指向性问题以取得最佳的声像定位。 有多种智慧控制方法： A.用电源开关手动控制 B.通过继电器连接中控系统控制 C.可通过控制器同时控制所有的电动音箱或根据需求可通过控制器分区控制（通过控制器JR45网线，有效距离可达120米） 有多种智慧控制方法
类型：8 " Dante有源同轴二分频电动扬声器 单元：低音单元：1x8 "铝盆架，钕磁铁，1.5"铜线耐高温音圈 高音单元：1x1 "球顶驱动器；过流、过压保护 频率响应F： 78Hz-20KHz
PoE功放功率:60W
标称阻抗： 8Ω
灵敏度： 91dB/1W/1M
覆盖角度： 90°x 90°
最大声压： 109dB
功放接口: 1x RJ451x RJ45 Dante interfaceDante接口:1路，具备增益,均衡,压限,噪声门，静音控制调整 供电：兼容于 802.3at，自然对流散热 结构：ABS高密度箱体，HD涂层体 白色高硬度喷漆：1.5mm六角形拉钢网，贴防水防尘声学海绵1.5mm 产品尺寸：380mm x 280mm x210mm 开孔尺寸：363mm x260mm 安装深度：210mm 重量：5.6KG
毛重：8.1KG
Embedded Electric Flip Speaker X8E Multifunctional motorized rotatable coaxial POE active speaker, suitable for sound reinforcement environments such as ceiling and wall installations. Built-in crossover and built-in Dante module.

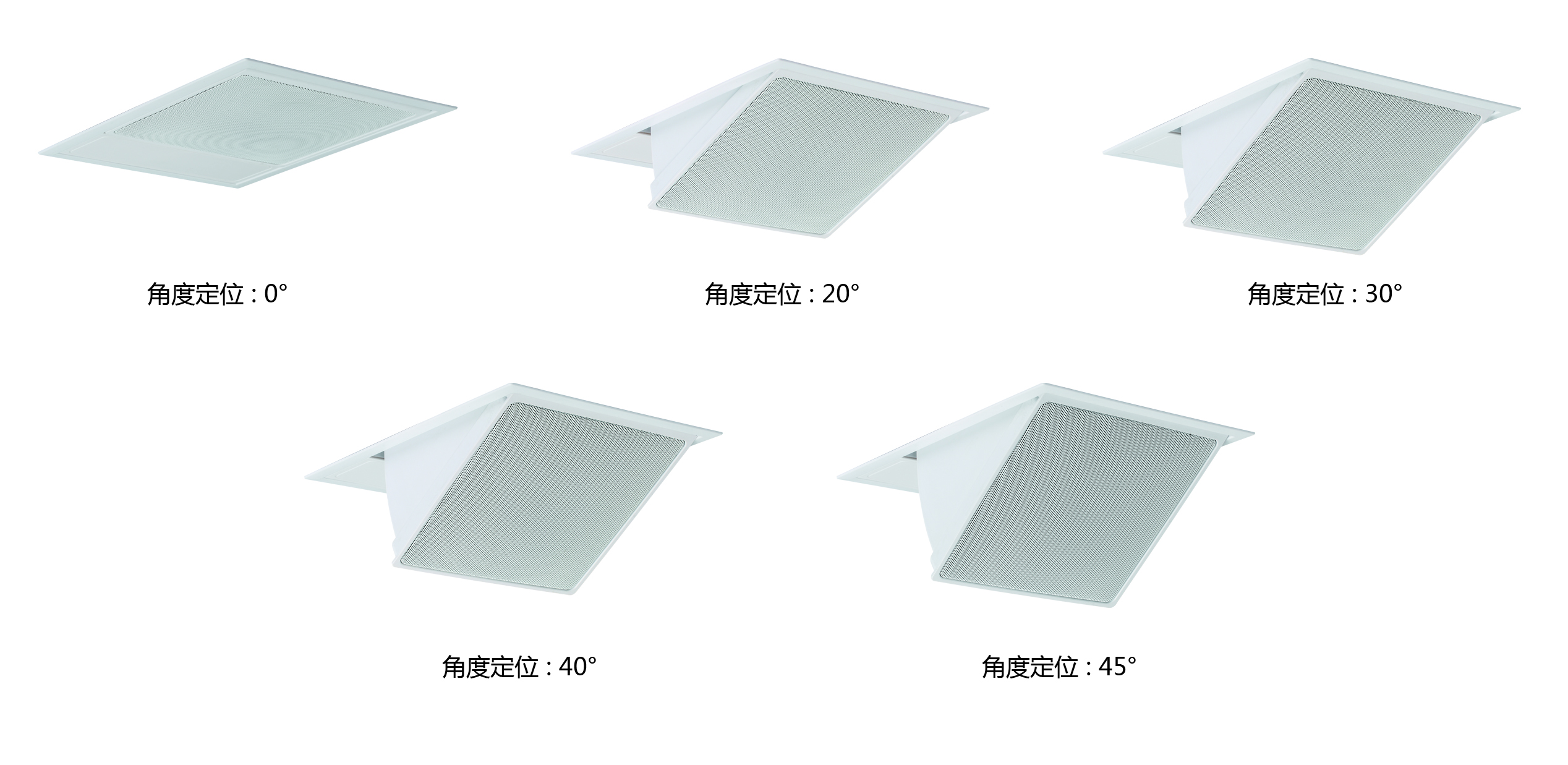

Five angle positions (20°, 30°, 35°, 40°, 45°) solve the problem of high-frequency directionality to achieve the best sound image localization.
Multiple smart control methods:
A. Manual control using the power switch
B. Control via relay connected to a central control system
C. Ability to control all motorized speakers simultaneously through a controller, or control in zones according to needs (via controller JR45 network cable, effective distance up to 120 meters)
Multiple smart control methods Type: 8" Dante Active Coaxial Two-Way Speaker
Units:
- Woofer: 1x8" aluminum cone frame, neodymium magnet, 1.5" copper voice coil with high temperature resistance
- Tweeter: 1x1" dome driver; overcurrent and overvoltage protection
Frequency Response (F): 78Hz-20KHz
PoE Amplifier Power: 60W
Nominal Impedance: 8Ω
Sensitivity: 91dB/1W/1M
Coverage Angle: 90° x 90°
Maximum Sound Pressure: 109dB
Amplifier Interface: 1x RJ45; Dante Interface: 1 channel, with gain, equalization, compression, noise gate, and mute controls
Power Supply: Compatible with 802.3at, natural convection cooling
Structure: High-density ABS cabinet with HD coating
White High-Hardness Spray Paint: 1.5mm hexagonal steel mesh with waterproof and dustproof acoustic foam 1.5mm
Product Dimensions: 380mm x 280mm x 210mm
Cutout Size: 363mm x 260mm
Mounting Depth: 210mm
Weight: 5.6KG
Gross Weight: 8.1KG
|
